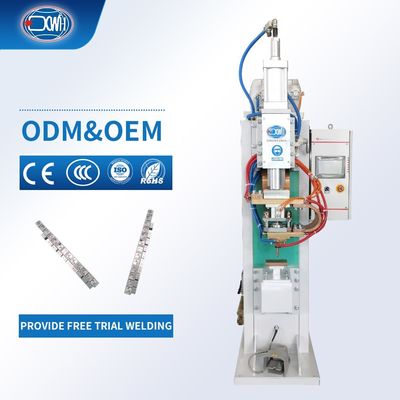

Multi-Point Medium-Frequency Resistance Galvanized Tube Spot Welding Welder Machine

Multi-Point Medium-Frequency Resistance Galvanized Tube Spot Welding Welder Machine

Markenbezeichnung:	Xingweihan
Modellnummer:	D (N) B-100 ， D (N) B-160, D (N) B-200, D (N) B-2550
MOQ:	1
Preis:	USD10000-USD12000
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsfähigkeit:	50 Sätze/Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE, RoHS, ISO

Produktname:

Multi-Punkte-Mittelfrequenzwiderstand verzinkte Röhrchen-Schweißermaschine mit verzinktem Rohrspot

Anwendung:

Schweißrohr verzinkt

Funktion:

Widerstandspunktschweißmaschine

Maschinenart:

Projektionsschweißmaschine

Kühlmethode:

Wasserkühlung

Schweißmaterial:

Edelstahl aus Kohlenstoffstahl

Besonderheit:

Schweißmaschine aus Edelstahlspot

Garantie:

12 Monate Garantie

Nach Garantiedienst:

Video -technischer Support, Online -Support und Ersatzteile

Nachverkaufsservice erbracht:

Kostenlose Ersatzteile, Feldinstallation, Inbetriebnahme und Schulung

Verpackung Informationen:

Holzkoffer

Versorgungsmaterial-Fähigkeit:

50 Sätze/Monat

Hervorheben:

galvanized tube spot welder

medium-frequency resistance welding machine

multi-point spot welder machine

Beschreibung des Produkts

Multi-Point Medium-Frequency Resistance Galvanized Tube Spot Welding Welder Machine

Product Introduction

The design philosophy of this device is to create a safe, comfortable, and efficient model of human-machine collaboration. We prioritize the convenience and safety of operation with a spacious work area and clear fixture positioning, making workpiece handling smooth and natural.

The dual welding head layout has been optimized through ergonomics to prevent operator strain. Equipment features include dual hand start buttons or safety light barriers to ensure welding only begins when hands are safely positioned. The low spatter welding process and efficient smoke exhaust system create a cleaner, healthier work environment.

Key Features

Safety first: Dual hand start button or safety light barrier ensures operator safety before welding begins.
Ergonomic design: Workbench height, fixture angle, and foot switch position designed to reduce operator fatigue.
Quick mold change: Fixture design allows rapid adaptation to different galvanized pipe diameters.
Environmentally friendly: Low spatter welding with optional integrated smoke purification system.
Visual indicators: Three-color status lights and buzzer provide clear equipment status feedback.

Technical Parameters

Items Models	DN(B)-100	DN(B)-160	DN(B)-200	DN(B)-250
Rated power (KVA)	100	160	200	250
Power input(V)	3φAC 380V	3φAC 380V	3φAC 380V	3φAC 380V
Max. short circuit current (KA)	30	35	40	45
Duty cycle(%)	50	50	50	50
Max. force(N)	6000	6000	10000	15000
Electrode length(MM)	450	450	450	500
Working stroke(MM)	80	80	80	80
Cooling consumption(L/min)	20	20	20	20
Max. welding capacity(MM)	3.0+3.0	4.0+4.0	5.0+5.0	6.0+6.0

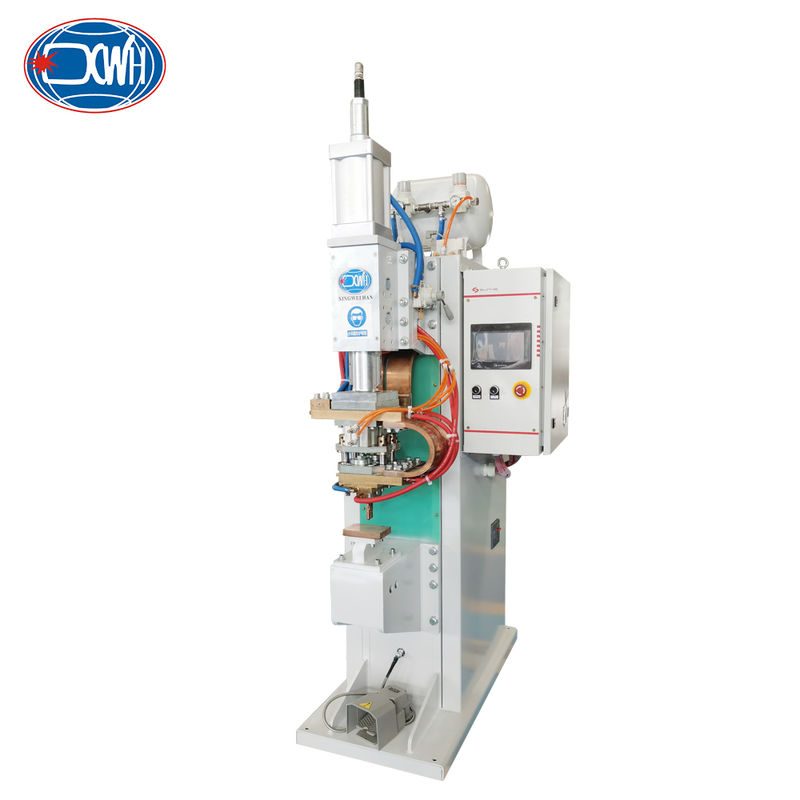

General Structures

Detailed Components

Double head synchronization, doubled efficiency: The two welding gun heads are precisely calibrated to simultaneously complete two high-quality welding points in a single operation cycle.

The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

The spare dedicated gas storage tank for welding machines reduces welding pressure fluctuations and ensures stable welding force.

All waterway components undergo surface treatment to prevent rusting, with independent drainage to the water tank for easy blockage observation.

Application Scenes

Frequently Asked Questions

When can you arrange shipment?

The shipment is 15 days after getting deposit, but customized machines should be more than 25 days.

Do you inspect the finished products?

Yes, each step of production products will be inspected by QC department before shipping.

Are you factory?

Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

How to buy your Spot Welder?

Please send us inquiry to our email, and we will give you a PI to send us payment.

How to contact you?

You can send a mail for us and call us.

How will you deliver my goods to me?

We always ship by air and sea in the mean time.

How about your transport packing?

We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane.

What kind of payment do you accept?

T/T, Western Union, PayPal, L/C, D/A, etc.
